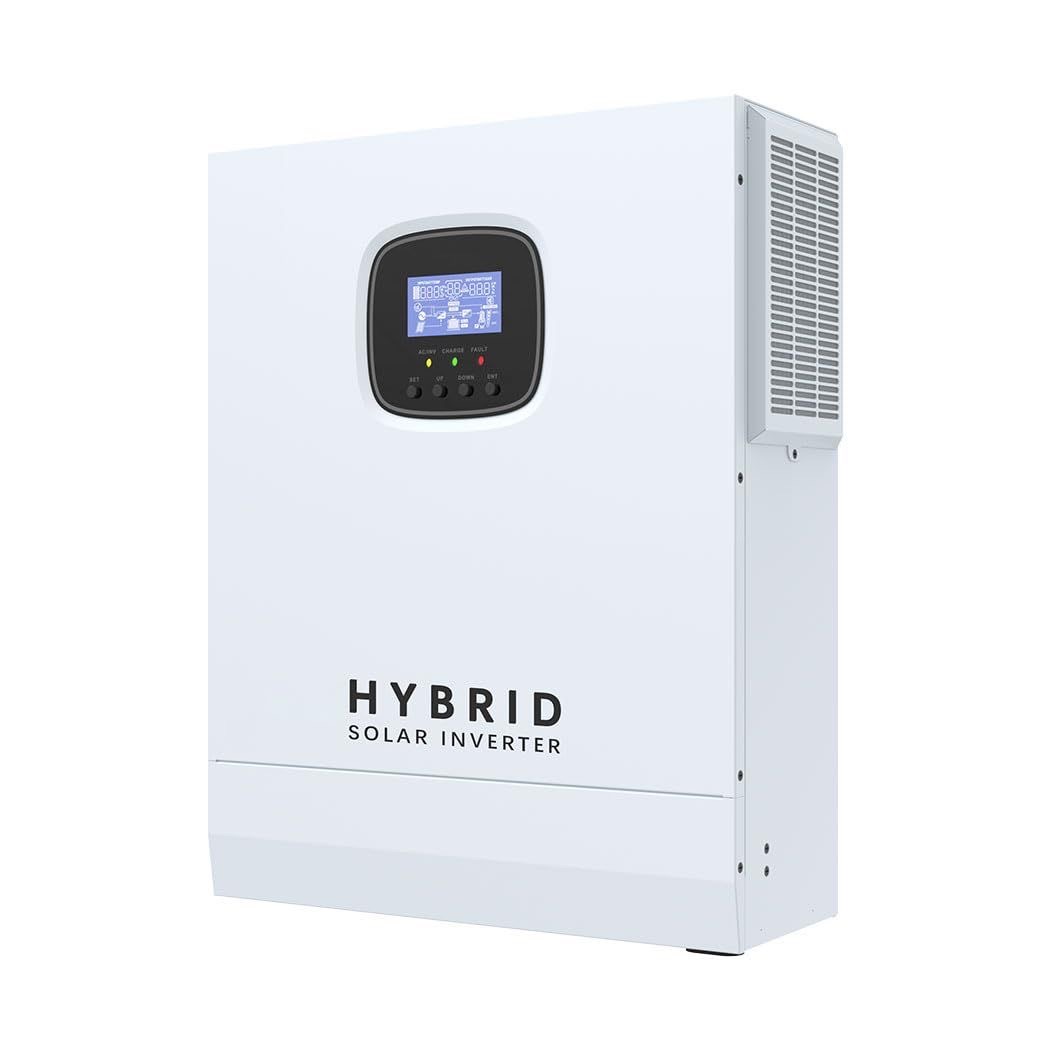

Why Does My Solar Inverter Keep Tripping in Nigeria? 9 Causes and Fixes

Introduction

A solar inverter that repeatedly trips is not something to solve by simply switching it off and on again. An inverter normally shuts down because its protection system has detected a condition that could damage the equipment or make the installation unsafe.

That condition could be as simple as too much load—or it could be a deeper issue involving battery voltage, cabling, temperature, grid input, motor starting current or configuration.

Current Nigerian solar content and customer discussions show frequent questions around inverter shutdowns, especially as households combine air conditioners, refrigerators, pumps and other high-power appliances on medium-size hybrid systems. Recent Nigerian installer guides specifically identify overload, low battery voltage, unstable grid input, poor wiring and overheating among common causes.

What Does It Mean When a Solar Inverter Trips?

When an inverter trips, it is essentially saying: “The electrical conditions I am seeing are outside my safe operating range.”

Depending on the model, the display may show messages such as:

• Overload
• Overcurrent
• Low battery
• High battery voltage
• Over-temperature
• Short circuit
• AC input fault
• Grid voltage/frequency fault
• PV over-voltage
• PV insulation fault

The exact code matters. Two inverters can shut down for completely different reasons while both appear to the customer as “the inverter is tripping.”

1. The Connected Load Is Too High

This is one of the most common causes.

Consider an illustrative 5kW inverter connected to 1,200W of general household loads, a 1,200W air conditioner, a 900W refrigerator/freezer combination and a 1,500W electric kettle.

1,200 + 1,200 + 900 + 1,500 = 4,800W

That may appear to fit under a 5kW rating, but motors have startup surges and appliance ratings are not always their actual instantaneous demand. Add another load or a compressor starting at the same time and the inverter may exceed its safe limit.

The solution is not always “buy a bigger inverter.” First determine the actual simultaneous peak load.

2. Motor Starting Surge Is Triggering the Inverter

Air conditioners, refrigerators, freezers, pumps and some other motor-driven equipment can demand substantially more current during startup than during normal operation.

An inverter might comfortably supply a 900W running load but still trip when a motor briefly demands several times that amount.

This is especially important when multiple compressors or motors start close together.

A professional assessment should check the inverter's surge rating and the startup characteristics of the largest motor loads—not only their advertised running wattage.

3. Battery Voltage Drops Under Load

A battery can appear adequately charged and still cause an inverter shutdown when a heavy load is applied.

Suppose a 48V system is supplying a 4kW AC load. Ignoring losses for a simple illustration:

4,000W ÷ 48V ≈ 83A

Real battery current will be higher because an inverter is not 100% efficient.

If the battery, BMS, terminals or cables cannot deliver that current without excessive voltage drop, the inverter may reach its low-voltage protection threshold and shut down.

This is why “the battery says 70%” does not automatically mean the battery can support every load the inverter is rated to supply.

4. Undersized or Loose Battery Cables

A surprising number of inverter problems originate between the battery and inverter rather than inside the inverter.

High current flowing through a poor connection creates voltage drop and heat. Possible causes include:

• Cable that is too small
• Excessively long DC cable run
• Loose terminal
• Poorly crimped lug
• Corrosion
• Damaged cable
• Inadequate battery fuse/breaker connection

Do not respond to a suspected DC connection problem by simply increasing the inverter's low-voltage cutoff or bypassing protection.

5. The Inverter Is Overheating

Power electronics produce heat. Nigerian ambient temperatures can be high, and an inverter installed in direct sunlight, a sealed cupboard or a poorly ventilated room can reach its thermal protection limit.

Heat can become worse when the inverter is heavily loaded for long periods, ventilation openings are blocked, fans are dirty or failing, several heat-producing devices are installed together, or the installation room has poor airflow.

Current Nigerian installer guidance specifically warns that high ambient temperatures can cause thermal derating and that ventilation is important to inverter reliability. citeturn0search8turn1search4

A proper installation should provide the clearances and environmental conditions specified by the inverter manufacturer.

6. Unstable Grid or Generator Input

Hybrid inverters may interact with utility power and generators as well as solar and batteries.

If the incoming AC voltage or frequency falls outside the inverter's acceptable range, the unit may reject the input or report an AC fault.

Poor generator output can create similar problems.

That means an inverter that works perfectly in battery mode may behave differently when grid or generator power returns.

Do not assume every trip is a battery problem. Check the inverter's AC input measurements and configuration.

7. Incorrect Inverter or Battery Settings

Modern hybrid inverters have many configurable parameters.

Incorrect settings can cause unnecessary protection events, particularly when the selected battery profile does not match the actual battery chemistry or BMS requirements.

Important settings can include:

• Battery type
• Charging voltage
• Maximum charging current
• Low-voltage cutoff
• Restart voltage
• Grid input range
• Output priority
• Generator input settings

A configuration should follow the inverter and battery manufacturer's specifications. Guessing values from another installation can create faults or shorten equipment life.

8. Solar PV Voltage or Current Is Outside the Inverter's Limits

An inverter can also trip because of the solar array.

Common design errors include connecting too many panels in series, exceeding the inverter's maximum PV voltage, exceeding MPPT current limits, or creating an unexpected condition during cold or bright operating conditions.

For example, if a panel has an open-circuit voltage of 50V and four are connected in series, the string's nominal open-circuit voltage is approximately:

50V × 4 = 200V

But the actual design must use the panel's temperature-adjusted voltage and the inverter's maximum PV voltage—not simply the nominal figure.

This is why PV string design should be calculated from the actual panel datasheet and inverter specifications.

9. A Short Circuit, Insulation or Wiring Fault

A recurring trip can be caused by an electrical fault rather than excessive normal load.

Potential issues include:

• Damaged AC cable
• Damaged PV cable
• Water ingress
• Incorrect polarity
• Poor termination
• Insulation failure
• Faulty appliance
• Short circuit on a load circuit

Protection devices exist to disconnect the system when dangerous electrical conditions occur. They should never be bypassed simply to keep the inverter running.

If you notice burning smell, melted insulation, sparking, smoke, exposed conductors or unusually hot cables, isolate the system using the manufacturer's safe shutdown procedure and get a qualified professional to inspect it.

Illustrative Diagnostic Case Study: 5kVA Home System

This is an illustrative diagnostic case study, not a claim that Zookie Solar completed this installation.

Imagine a home with a 5kVA hybrid inverter. The owner reports that the inverter is fine during the day but trips whenever the air conditioner and refrigerator run together at night.

A professional would not immediately replace the inverter.

First, measure the actual load. Then check battery voltage at rest and under load. Next, inspect battery cables and terminals. Then check the inverter's event/fault history and temperature. Finally, verify the AC loads and motor-starting behaviour.

Suppose the measured running load is 2.8kW, but the inverter trips when the refrigerator compressor starts. That points toward a transient surge, battery/DC-side limitation or inverter surge limitation rather than simply saying, “The house uses 2.8kW, so a 5kVA inverter should be fine.”

The correct repair comes from finding the bottleneck.

Why Resetting the Inverter Is Not a Real Fix

Restarting an inverter can sometimes clear a temporary protection event. But if the same fault keeps returning, repeated resets are only hiding the symptom.

If an inverter trips ten times in a week and is simply restarted ten times, the underlying problem remains.

Record the exact fault code, time of day, battery state, grid status, connected appliances and what was running immediately before the trip. That information can dramatically speed up diagnosis.

What a Professional Installer Should Check

A proper diagnosis should generally include:

1. Inverter fault/event history
2. AC input voltage and frequency
3. AC output load
4. Battery voltage at rest and under load
5. Battery BMS status where applicable
6. DC cable size, length and termination
7. Battery protection rating
8. Inverter temperature and ventilation
9. PV string voltage and current
10. PV polarity and insulation condition
11. Heavy-load startup behaviour
12. Grid/generator interaction
13. Inverter configuration
14. Appliance-specific faults

Some tests require live electrical measurements. Customers should not open energized equipment or probe live DC/AC terminals without appropriate competence and safety procedures.

When Should You Upgrade the System?

Sometimes repeated tripping is a genuine sign that the system has outgrown its original design.

This can happen when a household adds air conditioners, freezers, electric cooking equipment, pumps, office equipment, additional refrigeration or new business equipment.

If the measured peak demand is consistently close to the inverter's usable output, upgrading may be more sensible than constantly managing loads.

But an upgrade should follow measurement. Otherwise, you can spend money on a larger inverter while the real problem is a bad cable, weak battery, incorrect configuration or faulty appliance.

Final Takeaway

A solar inverter that keeps tripping is giving you useful information: something in the system is outside its safe operating conditions.

The cause may be overload, motor startup surge, battery voltage drop, poor DC cabling, overheating, unstable grid/generator input, incorrect settings, PV limits or an electrical fault.

The fastest route to a reliable system is not repeated resetting or guessing. It is proper diagnosis using the inverter's fault history, measurements and the original system design.
